Brand: Outai Optics
Series: Prism series
Type: Wedge Angle prism
Specification: Material: H-K9L

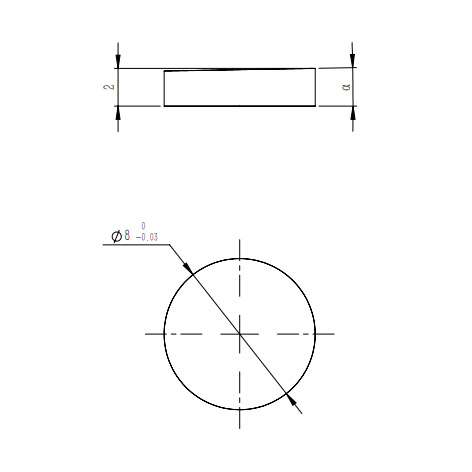

Dimensions: φ8mm (0 ~ -0.03mm)
Exit Angle: 0.1°, 0.2°, 0.3°, 0.4°, 0.5°, 0.6°, 0.7°, ~, 2.5°
Aperture: ≥90%
Coating: 0° incidence Angle VIS multi-layer anti-reflection film, Rave≤0.4%@440-455nm, 510-540nm, 630-640nm
Thickness: 1 ~ 3mm
Features: In the field of optics, wedge Angle prism is an ideal optical path adjustment device, two rotatable prisms can be
Adjust the direction of the outgoing beam within a certain range (10°).
Application: Mainly used in optical field of beam control migration and beam scanning.
